Description

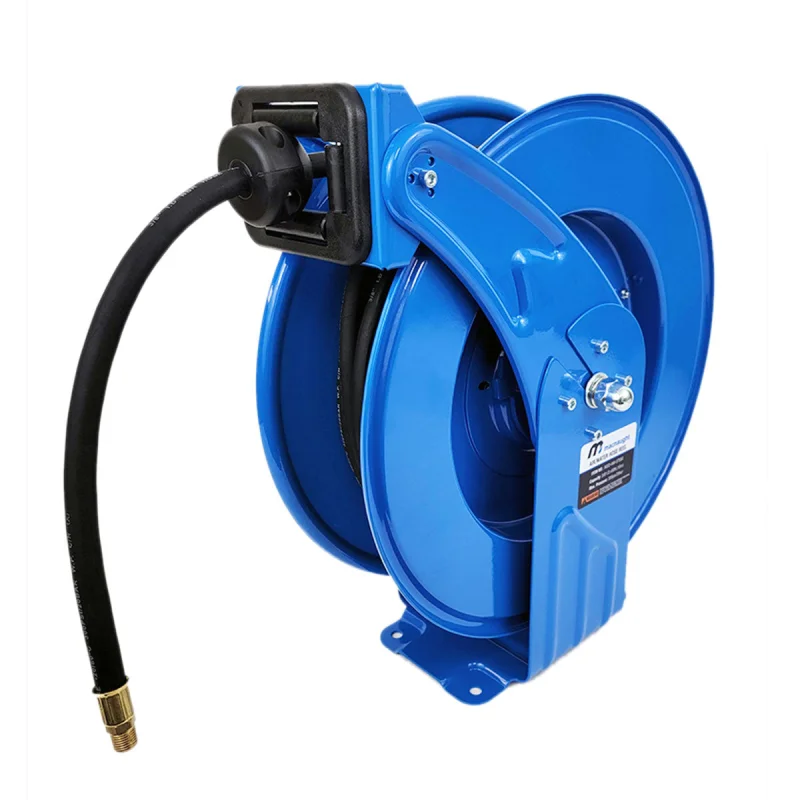

Retractable M3 Industrial Grade Air Water Hose Reel, Standard Retraction 3/8 x 50 ft
All Macnaught M3 Standard RetractionAir Water Hose Reelsare Industrial Grade, Dual Pedestal Design with Heat Treated Heavy Duty Gauge Steel, Reinforced Flanged edges, Easy to Service Ball Bearing swivel with 3/8 MNPT Brass Inlet Connection, 4 Direction Non-Snag Rollers, Adjustable Guide Arms, Premium 3/8 x 50 ft NBR Rubber Hose with Brass 3/8 MNPT Fitting, Rated to 300 PSI and suitable for operating in -40F to 176F Water and Air ( only ) applications. Lead Hose is not provided.
Rated for Mobile Truck Mount Applications.
INCLUDES 3 YEAR WARRANTY!
Macnaught M3 Specifications
| Description | Retractable Hose Reel for Air / Water |
| Part No. | M3D-AW-37550 |
| Application | Air / Water |
| Hose Id | 3/8″ |
| Hose Length | 50 |
| WP (psi) | 300PSI |
| Net Weight | 40lbs |
| Case | Blue Alloy Steel |
| Hose Material | NBR Rubber Hose with Brass MNPT Fitting |
| Max Temp | -40F to 226F |
| Reel Inlet | 3/8 MNPT |
| Hose Outlet | 3/8 MNPT |
| Warranty | 3 Year |
| Fully Serviceable |
M3D-AW-37550 Data Sheet: Link
M3D-AW-37550 Instruction Manual: PDF
M3D-AW-37550 Dimensions PDF
