Description

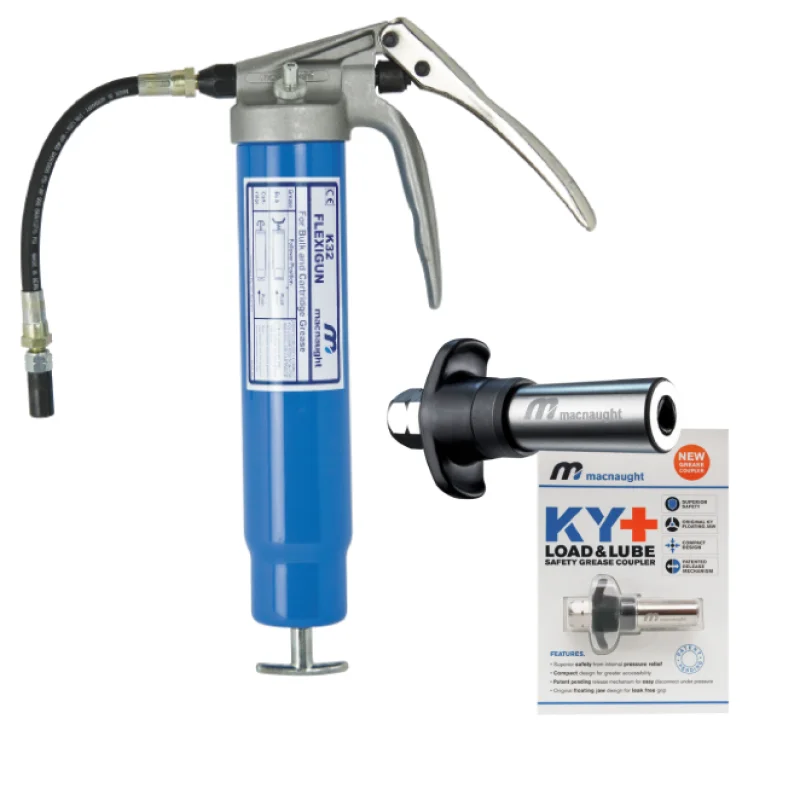

K32-02 Flexigun Manual Grease Gun
A classic Macnaught Heavy Duty Grease Gun, the FLEXIGUN incorporates a unique variable stroke piston and valve arrangement for true one handed operation and can produce increased pressure through short strokes or high volume shot using full stroke. Bulk fillable or 14oz. cartridge.
MacnaughtGrease Gunshave been built since 1948. Since then, our products have surpassed the toughest mining, automotive, trucking, marine, heavy equipment globally. Flexigun, Levergun and Grease Transfer Pump models available. All of our grease guns carry the industrys longestwarranty 10 years.For the very best cost of ownership, Macnaught grease guns will provide years of trouble free service we guarantee it!
KY+ Safety Grease Coupler True One Handed Design
Macnaughts patented release mechanism delivers enhanced safety and is both easier and faster to use. TheKY+retains the benefit of the original floating jaw design, providing a strong, leak-free connection while improving safety and usability.2 year warranty
Macnaught K32-02 Features and Benefits
- Industry Leading 10-Year Warranty
- KY Supergrip three-jaw high-pressure coupler Positive no leak connection
- 1/8 NPT Flex Connection x 12 long
- Heavy-duty, stepped barrel for long service and easy grip
- Robust zinc handle
- Filler Bleeder opens by hand with no tools
- Screw fasteners for easy servicing no rivets
- Machined barrel threads screw on easily to head
- Lock the plunge rod into the follower for easier bleeding
Macnaught KY+Safety Grease CouplerFeatures and Benefits
- Click on-and-offconnection reduces hydraulic bind and high pressure.
- Quick & easy locking grease gun coupler releasemechanism: Patent pending* smartrelease mechanismenables effortless onehanded click on and click offrelease up to 10,000psi.
- Original KY floating jaw:Unique floating jaw operationcreates a powerful grip aspressure builds to enhanceperformance.
- Compact design:The compact body ofthe KY+ makesit easier to get intotight spaces.
- Superior safety:Smart releasemechanism features aninternal bleeding systemfor soft pressure reliefand safe disconnect.
- Industrysbest grease gun coupler
- 2 year warranty
Macnaught K32-01 Specifications
| Model number | K32-02 Flexigun |
| Manual Grease Gun | |
| KY SUPERGRIP coupler | |
| Fully serviceable | |
| Included extensions | 12 Flexible |
| Typical Output Pressure Range | 5,000-10,00 psi / 34,450 68,900 kPa |
| Output Volume Per Shot | 0.02oz/0.68g |
| Cartridge | 14oz/400g |
| Bulk Fillable | |
| Max Grease Type | NLGI No.2 |
| Warranty | 10 years |
Macnaught KY+Safety Grease CouplerSpecifications
| Safety Grease Coupler | |
| Part number | KYPLUS |
| Size | 1/8 NPT(F) Inlet |
| Max Pressure | 10,000psi |
| Warranty | 2 years |
Macnaught K32-02 Data Sheet ( PDF )
Macnaught K32-02 Instruction Manual ( PDF )
Macnaught K32-02 Flexigun Cap Removal Instructions (VIDEO)
Macnaught K32-02 Grease Cartridge Installation (VIDEO)
Macnaught KY+ Safety Grease Coupler Data Sheet:(PDF )
Macnaught KY+ Safety Grease Coupler Instruction: (PDF)
