Description

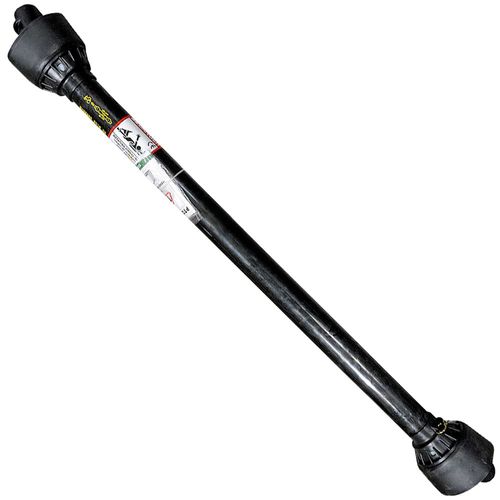

This series 1 PTO shaft features a 1-3/8 inch 6-spline on the tractor end and a 1-1/4 inch round implement end. It is compatible for use with post hole diggers. The PTO extension measures 68.5 inches long and collapsed length measures 50.5 inches.
Specifications
- Agmate® PTO Shaft
- Series 1 PTO Shaft
- 1-3/8 6-spline tractor end x 1-1/4 round implement end (shear pin type yoke)
- For Shear Bolt, purchase a 3/8 inch X 3-1/2 inch GRADE 2 Bolt with locknut or regular nut with lock washer.
- Collapsed length: 50.5 in.
- Extended length: 68.5 in.
- 16 HP at 540 RPM
- 24 HP at 1000 RPM
- Commonly used with post hole diggers
