Description

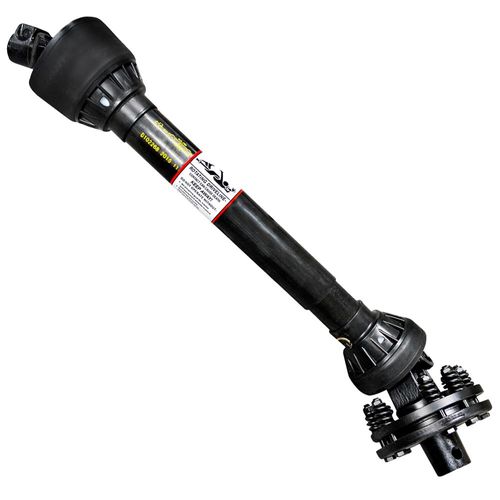

This PTO shaft is designed for your Series 4 tiller. The PTO shaft yokes each have a bore diameter of 1-3/8 inches. One has a 6-spline interior and the other has a smooth center with a slip clutch. Theslip disc clutch on this PTO shaft helps protect the machinery gears from potential damage that could occur.
Specifications
- Grizzly® PTO Shaft
- Series 4
- Safe extended length: 42.4″
- Collapsed length: 34.5″
- Tractor end: 1-3/8″ x 6 spline, quick detach yoke
- Implement end: 1-3/8″, smooth yoke with bolt attachment and slip clutch
- 24 HP at 540 RPM
- 55 HP at 1000 RPM
