Description
ShopPRO Floor Service Jacks are built up to a 20,000 lb lifting capacity and provide the reliability and quality needed to keep your operation going. Made in the USA, MAHLE vehicle service jacks offer a low starting height that provides shops with the flexibility to accommodate a variety of vehicles.

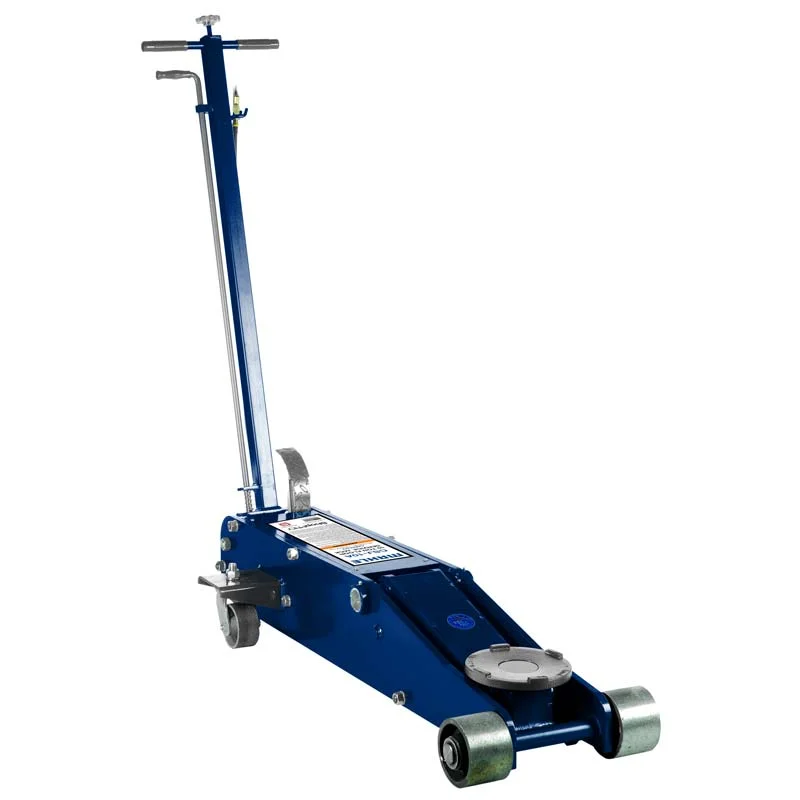

CSJ-10A10 Ton Service Jack Features
- Unique large front wheels and long-life heavy-duty rear swivel caster design that makes maneuvering any component an easy task
- Heavy-duty steel frame design stands up to the most vigorous shop use
CSJ-10A10 Ton Service Jack Specifications
- Maximum Capacity: 20,000 lb (9,072 kg)
- Minimum Start Height: 7 in (18 cm)
- Maximum Lift Height: 27 in (69 cm)
- Power: Air/Hydraulic/Manual
- Required Air Pressure: 90 to 175 psi (6.2 to 12.1 bar)
- Chassis Dimensions (H x L): 10 in x 53.5 in (25 cm x 136 cm)
- Handle Length: 47 in (119 cm)
- Dimensions (W x L): 21.9 in x 101.8 in (56 cm x 259 cm)
- Overall Reach: 93 in (236 cm)
- Front Caster Diameter: 5 in (13 cm)
- Rear Swivel Caster Diameter: 4 in (10 cm)
- Saddle Diameter: 8 in (20 cm)
- Front Width (Caster to Caster): 17.1 in (43 cm)
- Rear Width (Bracket to Bracket): 20.1 in (51 cm)
- Shipping Weight: 410 lb (186 kg)
