Description
ShopPRO air lifts offer an easy-to-use air rocker valve that provides smooth and precise raising and lowering control. The perfect solution for spring work.

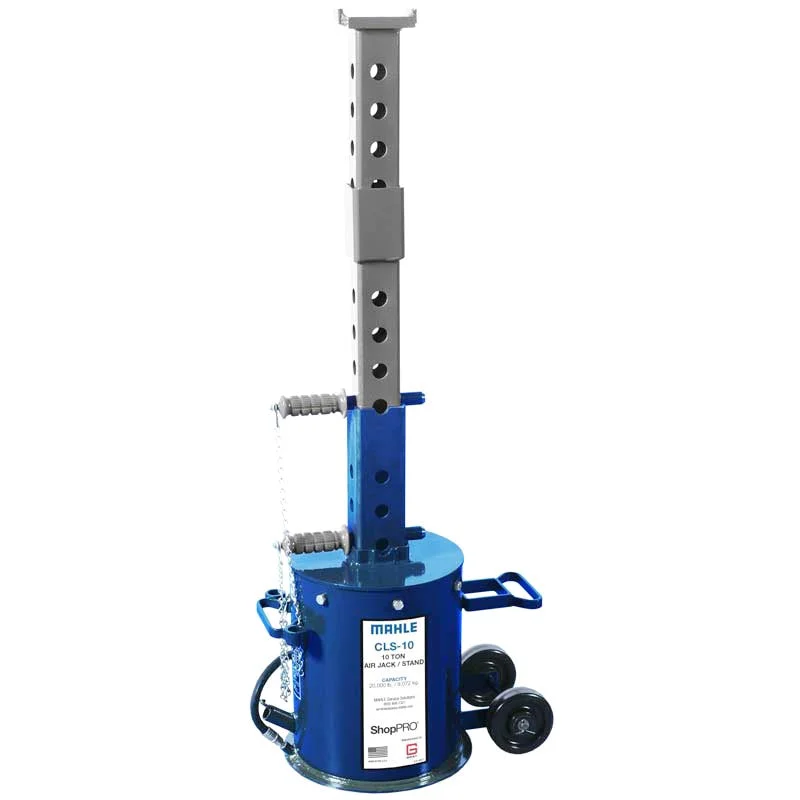

The CLS-10 10 Ton Air Lift & Support Stand offers your shop the ability to lift a wide array of vehicles including heavy duty commercial trucks and motor vehicles.
CLS-15 15 Ton Air Lift & Support Stand Features
- Designed for spring, tire, and brake work on agricultural sprayers and equipment
- 100% air operated
- Built-in vehicle support stand equipment
- Multiple width saddle options included
- Removable handle
- Can be used in pairs with the air valve T-connector
CLS-15 15 Ton Air Lift & Support Stand Specifications
- Capacity: 30,000 lb (13,608 kg)
- Minimum Start Height: 17.6 in (45 cm)
- Maximum Lift Height w/ Extension: 52.3 in (133 cm)
- Maximum Lift Height w/o Extension: 37.3 in (95 cm)
- Cylinder Bore: 14 in (36 cm)
- Required Air Pressure: 200 psi (13.8 bar)
- Overall Length w/ Handle: 58.5 in (149 cm)
- Overall Length w/o Handle: 25.5 in (65 cm)
- Wheel Diameter: 5 in (13 cm)
- Stroke: 10 in (25 cm)
- Inside Saddle Width: 4.8 in (12 cm)
- Overall Saddle Width: 5.5 in (14 cm)
- Extension Tubes: Square
- Handle Length: 36.5 in (93 cm)
- Shipping Weight: 230 lb (104 kg)
Compare the CLS-10 10 Ton to the CLS-15 15 Ton Air Lift Support Stands
| Specification | CLS-10 10 Ton Air Lift & Support Stand | CLS-15 15 Ton Air Lifts and Support Stand |
|---|---|---|
| Capacity | 20,000 lb (9,072 kg) | 30,000 lb (13,608 kg) |
| Minimum Start Height | 17.5 in (44 cm) | 17.6 in (45 cm) |
| Maximum Lift Height w/ Extension | 52.5 in (133 cm) | 52.3 in (133 cm) |
| Maximum Lift Height w/o Extension | 37.5 in (95 cm) | 37.3 in (95 cm) |
| Cylinder Bore | 12 in (30 cm) | 14 in (36 cm) |
| Required Air Pressure | 200 psi (13.8 bar) | 200 psi (13.8 bar) |
| Overall Length w/ Handle | 48 in (122 cm) | 58.5 in (149 cm) |
| Overall Length w/o Handle | 19 in (48 cm) | 25.5 in (65 cm) |
| Wheel Diameter | 5 in (13 cm) | 5 in (13 cm) |
| Stroke | 10 in (25 cm) | 10 in (25 cm) |
| Inside Saddle Width | 4.5 in (11 cm) | 4.8 in (12 cm) |
| Overall Saddle Width | 5.3 in (13 cm) | 5.5 in (14 cm) |
| Extension Tubes | Square | Square |
| Handle Length | 29 in (74 cm) | 36.5 in (93 cm) |
| Shipping Weight | 138 lb (63 kg) | 230 lb (104 kg) |
