Description

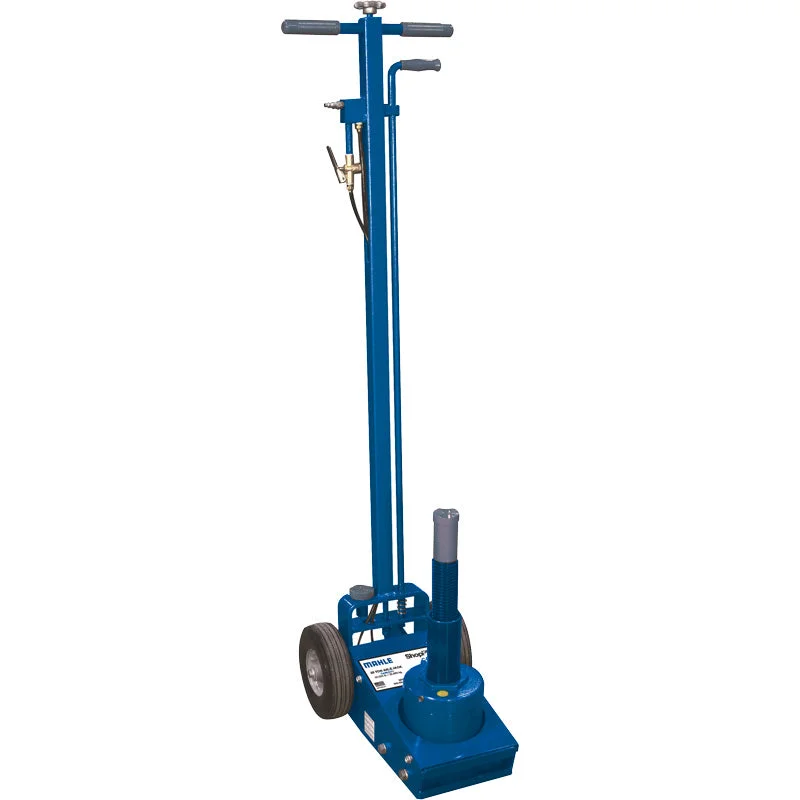

The ShopPRO CAJ-25 25 Ton Axle Jack is known throughout the industry as the most reliable and longest lasting lift system of its kind. Its compact and field-ready design and low starting height makes this hydraulic Axle Jack ideal for shop use or road service work.
CAJ-25 25 Ton Axle Jack Features
- Unique QuickLift feature: internal design raises the ram to the load at a quicker rate of speed
- Low starting height of 8 allows for easy positioning and spotting underneath low profile vehicles
- Patent pending air ram retract feature allows the user to reset the ram back to minimum starting height without reconnecting the hose
- Short handled version ideal for road service work
- Black Armor Coating: Protects the ram from rust and corrosion to extend product longevity
- Anti-Corrosive System: The distinctive design of the internal system protects the hydraulic system to extend product life
CAJ-25 25 Ton Axle Jack Specifications
- Capacity: 50,000 lb (22,680 kg)
- Minimum Start Height: 8 in (20 cm)
- Maximum Lift Height: 21 in (53 cm)
- Power Source: Air/Hydraulic
- Required Air Pressure: 90 to 120 psi (6.2 to 8.3 bar)
- Stroke: 5.1 in (13 cm)
- Extension Screw Adjustment: 4.9 in (12 cm)
- Frame Width: 12 in (30 cm)
- Frame Length: 20 in (51 cm)
- Wheel Diameter: 8 in (20 cm)
- Handle Length: 53 in (135 cm)
- Shipping Weight: 124 lb (56 kg)
