Description

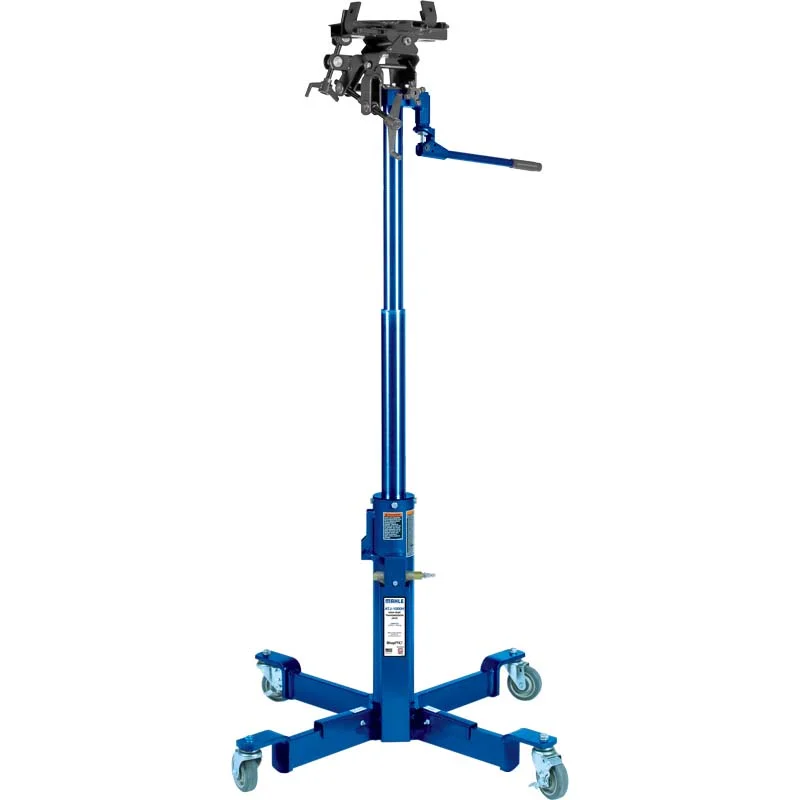

The ShopPRO ATJ-1000H high-rise Automotive Transmission Jack from Mahle features the most flexible, usable, and safe head-plate design to boost productivity.
ATJ-1000H high-rise Automotive Transmission Jack Features
- Two-stage design: 1st stage 100% air operated for speed; 2nd stage hydraulic for precise control
- Swivel casters make for easy maneuverability
- Nylon Speed-Strap quickly and conveniently secures the load
- Heavy-duty acme threaded screws provide greater bearing surface for easier tilt adjustments
- Additional adapters available
ATJ-1000H high-rise Automotive Transmission Jack Specifications
- Capacity 1,000 lb (454 kg)
- Minimum Start Height 34.5 in (88 cm)
- Maximum Lift Height 72 in (183 cm)
- Power 1st Stage Air / 2nd Stage Hydraulic
- Head Plate Dimensions 11.5 in x 11.5 in (29 cm x 29 cm)
- Dimensions (W x L) 41 in x 41 in (104 cm x 104 cm)
- Swivel Caster Diameter 4 in (10 cm)
- Required Air Pressure 90 to 160 psi (6.2 to 11.0 bar)
- Tilt (Forward / Rear / Side to Side) 40 / 20 / 10
- Shipping 125 lb (57 kg)
