Description

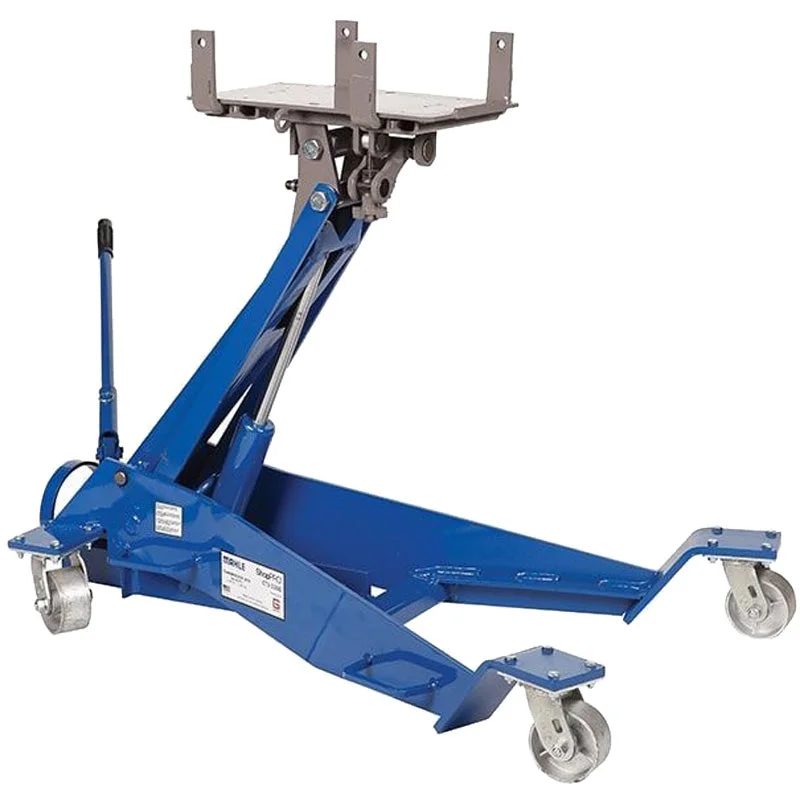

The Mahle ShopPRO CTJ-2200A has been continually manufactured since the 1970’s and has become the industry’s most desired choice for truck component installation and removal.
CTJ-2200A Air / Hydraulic Commercial Transmission Jack Features
- 2-stage design: 1st stage100% air operated for speed; 2nd stageair / hydraulic for precise control
- Heavy duty casters stand up to rigorous shop use
- Large head plate accommodates a variety of different sized components
- Our transmission and component lifts save time and provide maximum safety for any technician
- Forward, rear, and side tilt adjustments
- Four adjustable quick ratcheting brackets
- Manual/Hydraulic powered
- Air assist options available
- Optional adapters available
CTJ-2200A Air / Hydraulic Commercial Transmission Jack Specifications
- Capacity: 2,200 lb (1,001 kg)
- Minimum Start Height: 8 in (20 cm)
- Maximum Lift Height: 34 in (86 cm)
- Power: Air / Hydraulic
- Required Air Pressure: 90 to 200 psi (6.2 to 13.8 bar)
- Power (RAM) Travel: 26 in (66 cm)
- Head Plate Dimension: 11.5 x 17 in (29 x 43 cm)
- Tilt (Forward / Rear / Side to Side): 10 / 0 / 0
- Dimensions (W x L): 28.3 x 44.5 in (72 x 113 cm)
- Handle Length: 24.3 in (62 cm)
- Caster Diameter: 4 in (10 cm)
- Shipping Weight: 305 lb (138 kg)
