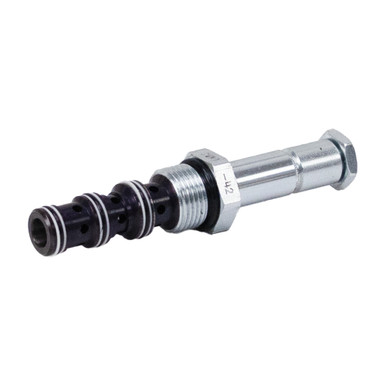

Solenoid Cartridge Valve 4 port, 2 position Normally Open HydraForce SV10-42-0-N-00

Description

SOLENOID CARTRIDGE VALVE
Brand new Hydraforce SV10-42 solenoid-operated, 4 port, 2 position, direct-acting spool type, normally open, screw in hydraulic cartridge valve. When de-energized, the SV10-42 flow paths are port 3 to port 4, and port 2 to port 1. When energized, the valve’s spool shifts to block all ports. (Used on Surplus Center item number 902154)

SPECIFICATIONS

• Brand Hydraforce
• Model Number SV10-42-0-N-00
• Operating Pressure 3000 PSI
• Proof Pressure 4000 PSI
• Flow Rating 6 GPM
• Temperature -40 to 212°F (-40 to 100°C)
• Cavity VC10-4
• Size 4.84″ x 1.00″ x 1.00″
• Shpg 0.4 lbs.
