Description
SOLENOID CARTRIDGE VALVE

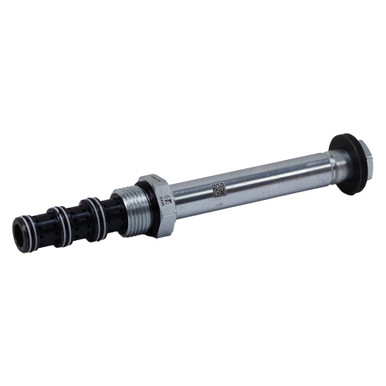

Brand new Hydraforce SV10-47B solenoid operated, 4-port, 3-position, direct acting, spool type, open center screw-in hydraulic cartridge valve.
SPECIFICATIONS
- Brand Hydraforce
- Model Number SV10-47B-0-N-000
- Operating Pressure 3625 PSI
- Proof Pressure 5000 PSI
- Temperature -40 to 212°F (-40 to 100°C)
- Cavity VC10-4
- Size 6.88″ x 1.13″ x 1.13″
- Shpg 0.65 lbs.
| 12 Volt DC coil w/ Wire Leads Hydraforce 6352012 | 900863 |
| 12 Volt DC Coil w/ Spade Terminals Hydraforce 6351012 | 900899 |
| 115 Volt AC Coil w/ Wire Leads Hydraforce 6365115 | 900864 |
| Series 10 4-Way SAE 6 Valve Housing Hydraforce 7024460 | 901154 |
