Description

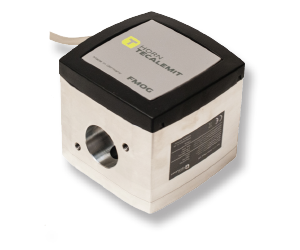

Tecalemit’s FMOG line of flow meters boast quality and accuracy. The FMOG line of oval gear meters offer pulse out features and hi-flow capabilities for our diesel and DEF lines. The FMOG 100 is a flow meter for streaming liquids according to the measurement principle of an oval wheel counter. It is suitable for employment as a stationary counter. The impulse sensor enables employment in a fluid management system.
Specifications
- No display
- Flow 26 GPM
- 0.5% Accuracy
- 1 in. FNPT Inlet/outlet with available male BSP threads
- 25/gal pulse ratio output
- 204.22/gal Pulse ratio
- Oval gear
- Heavy-duty housing
- Used for diesel fuel( DEF), water, windshield washer fluid, coolant/antifreeze and heavy lubes.
