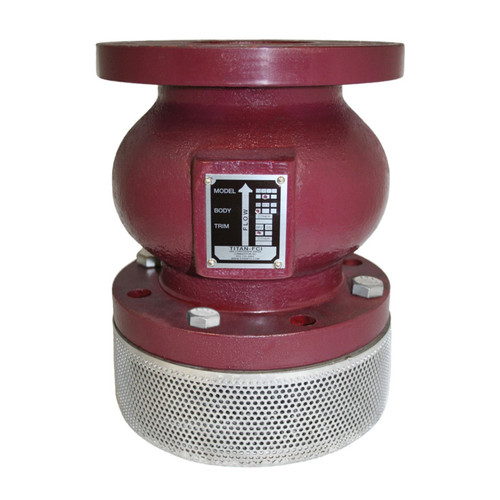

Titan Flow Control FV50-DI Flanged Ductile Iron Foot Valve Assembly Description
Titan Flow Control’s FV 50-DI Globe Style Foot Valve Assembly is designed to silently maintain prime during pump outage.
A foot valve is a special type of check valve that has a built-in strainer. It is installed at the intake side of a suction pipe and pump. Its purpose is to prevent the loss of prime when the liquid source (wet well) is lower than the pump. Prime is defined as the charge of liquid required to begin pumping action and priming is the process of filling the pump and suction pipe with liquid.
The check valve part of the foot valve opens when the pump starts to allow liquid to enter the suction pipe and pump. When the pump stops the check valve closes and prevents the liquid from emptying. Thus the foot valve eliminates the need to prime the pump each time it is started. The strainer component of the foot valve helps to remove unwanted debris from the liquid that may cause damage to the pump.
