Description

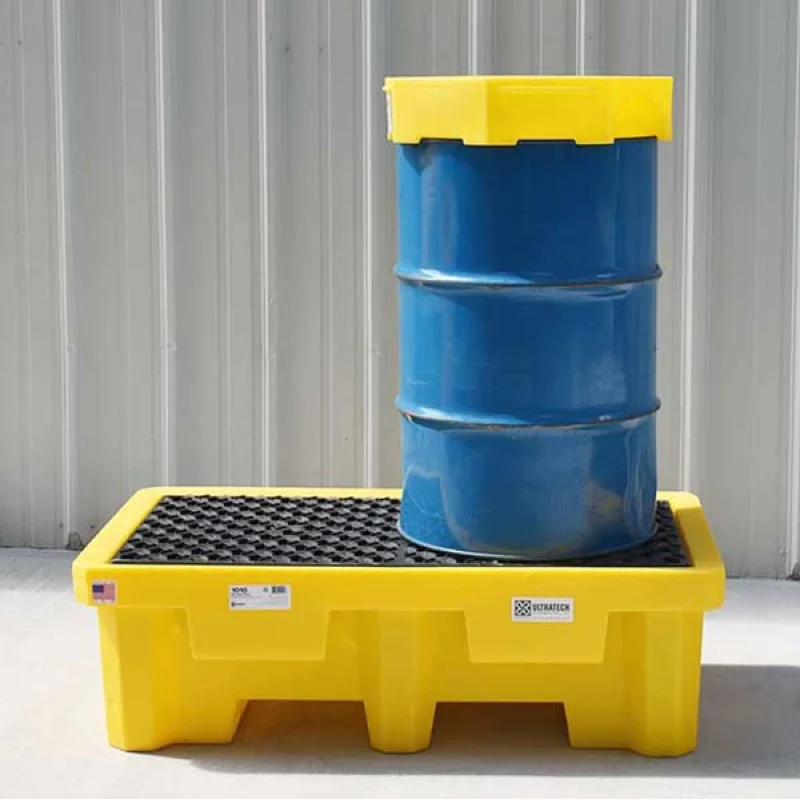

Ultra Spill Pallet Standard Protects Against Oil and Chemical Spills or Leaks
The Ultra-Spill Pallet is specially constructed to support heavy loads and designed to be easily used and transported. Its 100% polyethylene (LLDPE) construction makes it compatible with a wide range of chemicals, while its low-rise walls allow easier accessibility for pouring.
It helps meet spill containment regulations for up to four drums, and comply with SPCC and EPA spill containment requirements.
Product Highlights
- High load capacity: 6,000 lbs. for Ultra-Spill Pallet P4, 3,000 lbs. for Ultra-Spill Pallet P2.
- Bright, safety yellow sidewalls are translucent, offering convenient visual leak detection.
- 100% polyethylene (LLDPE) construction – compatible with a broad range of chemicals, including acids and corrosives.
Cross of Life Structural Design The pallet incorporates an innovative “Cross of Life” internal support system, specifically engineered to preserve structural integrity under heavy loads. The molded LLDPE cross connects all four sidewalls, channeling downward forces from the grates toward the center of the pallet. As weight increases on the top surface, the Cross of Life design counteracts lateral sidewall deformation, effectively pulling the walls inward and preventing sagging over time. This design ensures consistent performance, durability, and long-term load-bearing capacity.
Ultra-Spill Pallet Standard Specifications
| Part No. | Description | Dimensions (Inches) | Grating Surface (Inches) | Load Capacity (UDL lbs.) | Containment Capacity (Gallons) | Weight (Lbs.) |
|---|---|---|---|---|---|---|
| 1010 | P2 Pallet Without Drain | 53 29 16.5 | 48 24 | 3,000 | 66 | 63 |
| 1011 | P2 Pallet With Drain | 53 29 16.5 | 48 24 | 3,000 | 66 | 63 |
| 1000 | P4 Pallet Without Drain | 53 53 11.8 | 48 48 | 6,000 | 66 | 90 |
| 1001 | P4 Pallet With Drain | 53 53 11.8 | 48 48 | 6,000 | 66 | 90 |
